Presence Sensor

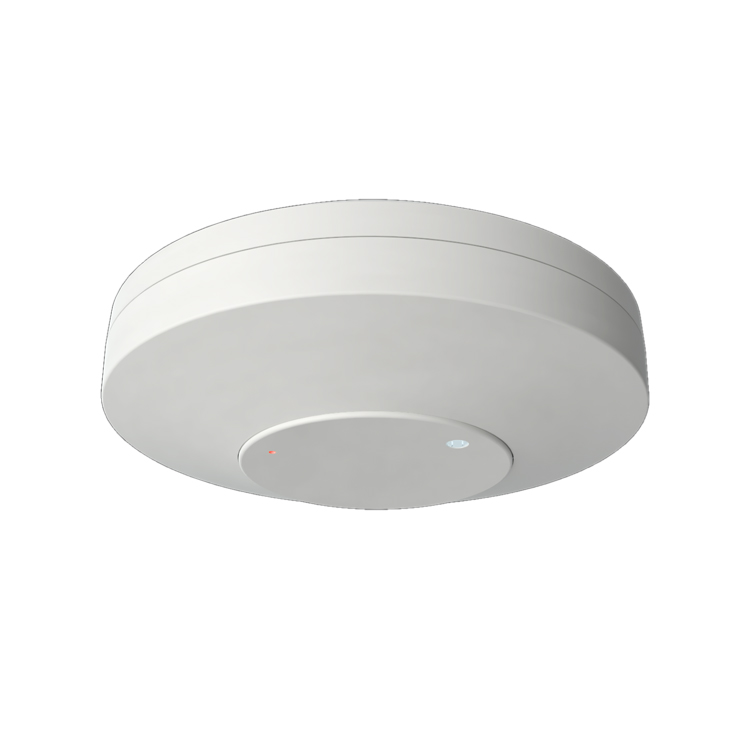

Human Life Presence Detection Wave Sensor (PS-RS96)

Human Life Presence Detection Wave Sensor (PS-RS96)

Model NO.: PS-RS96
Function:Human Life Presence Detection Wave Sensor
Ceiling surface mounted
Long detect range
INQUIRY

Function

1) Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 10LUX circumstance. As for Adjustment, please refer to testing way.

2) Time-delay is added continually: when it receives the second induction
signal after the first inductor, it will compute time once more on the rest of the first time-delay basic. (Set time)

3) Delay adjustment: can be set as needed. The minimum value is 5 seconds, and the maximum value is 3 minutes

Techncial data:

1) Operating frequency: 24-24.2GHz
2) Rated load: 800W (resistive)/300W (capacitive)
3) Rated voltage: 100-240V AC, 50/60Hz
4) Output signal: ON/OFF switch
5) Standby power consumption:<0.4W

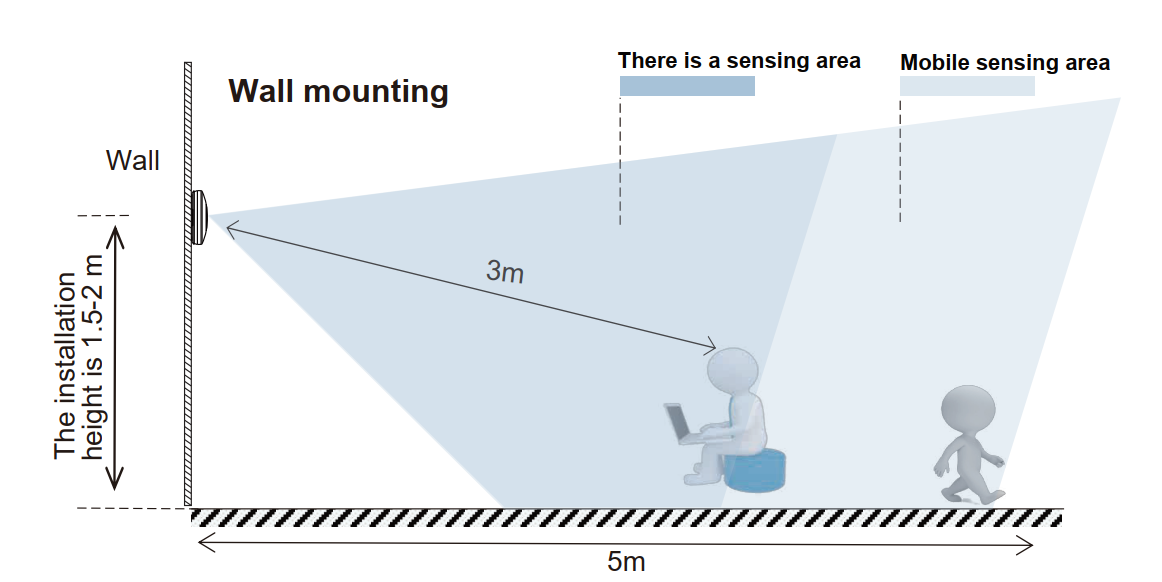

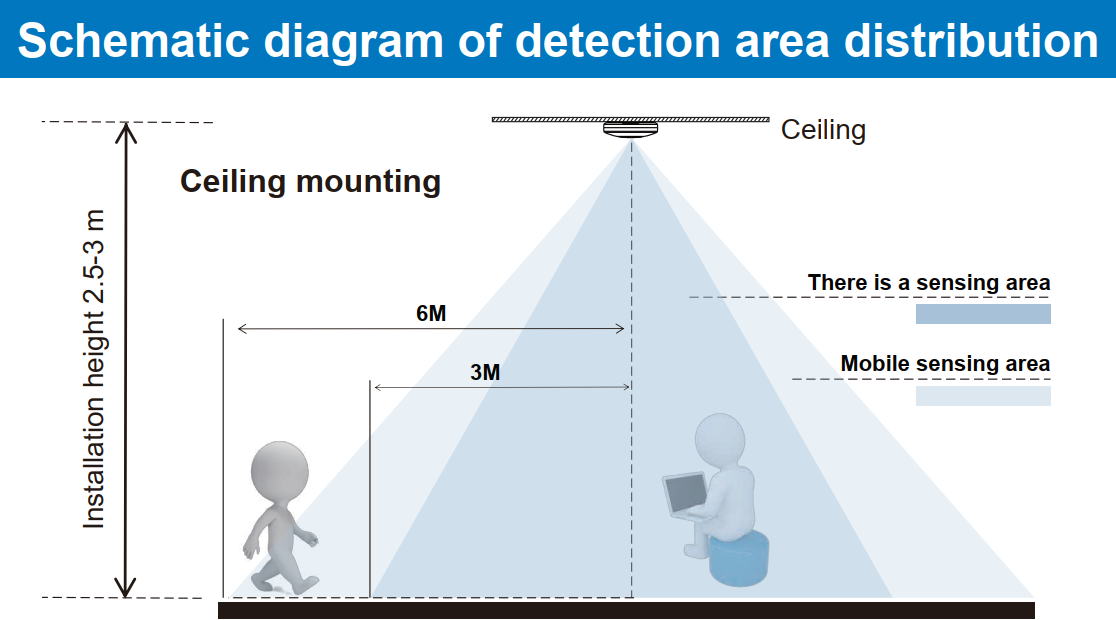

6) Installation height: 2-3m
7) Detection radius:>3m (with a detection range radius of 1-3 meters) Move
the detection radius to 3-6m.
8) Light control range: 5-300LUX - daytime
9) Delay shutdown: 5 seconds to 3 minutes (set the delay shutdown time as needed)
10) Protection level IP20
