PIR Motion Sensor

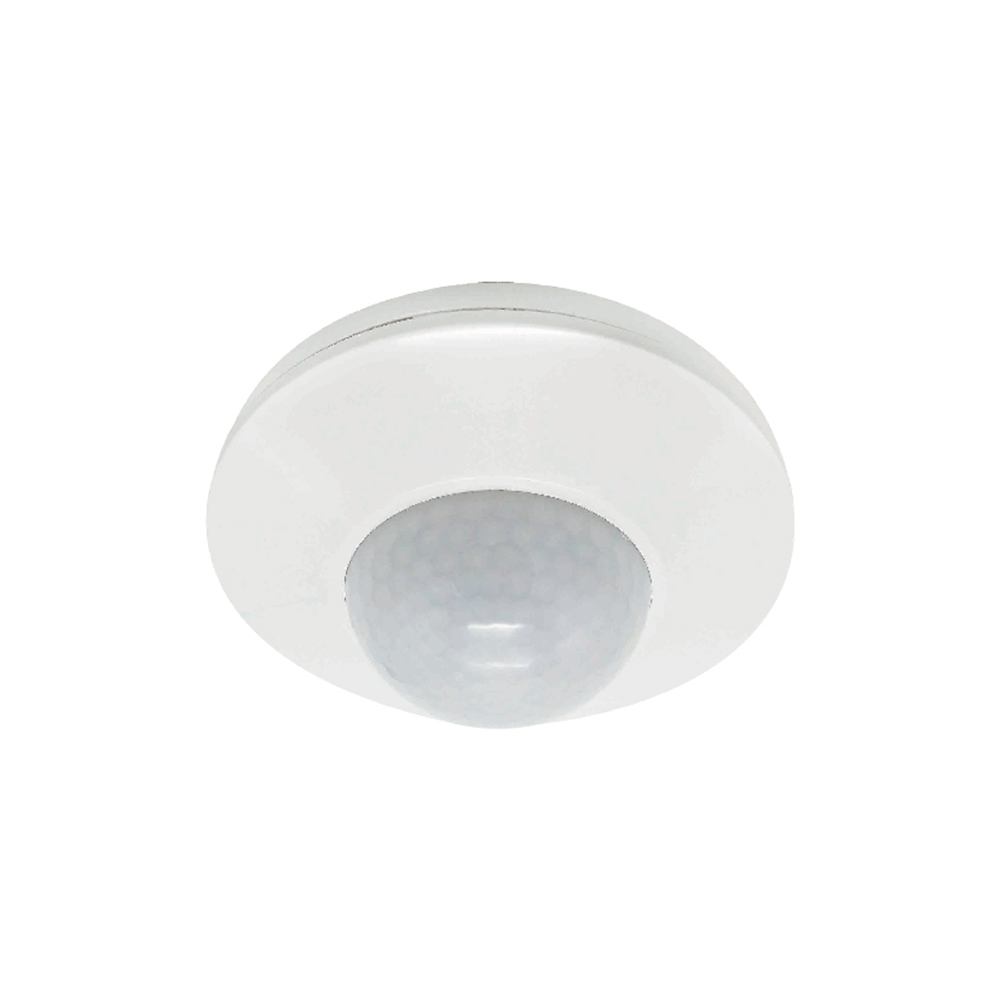

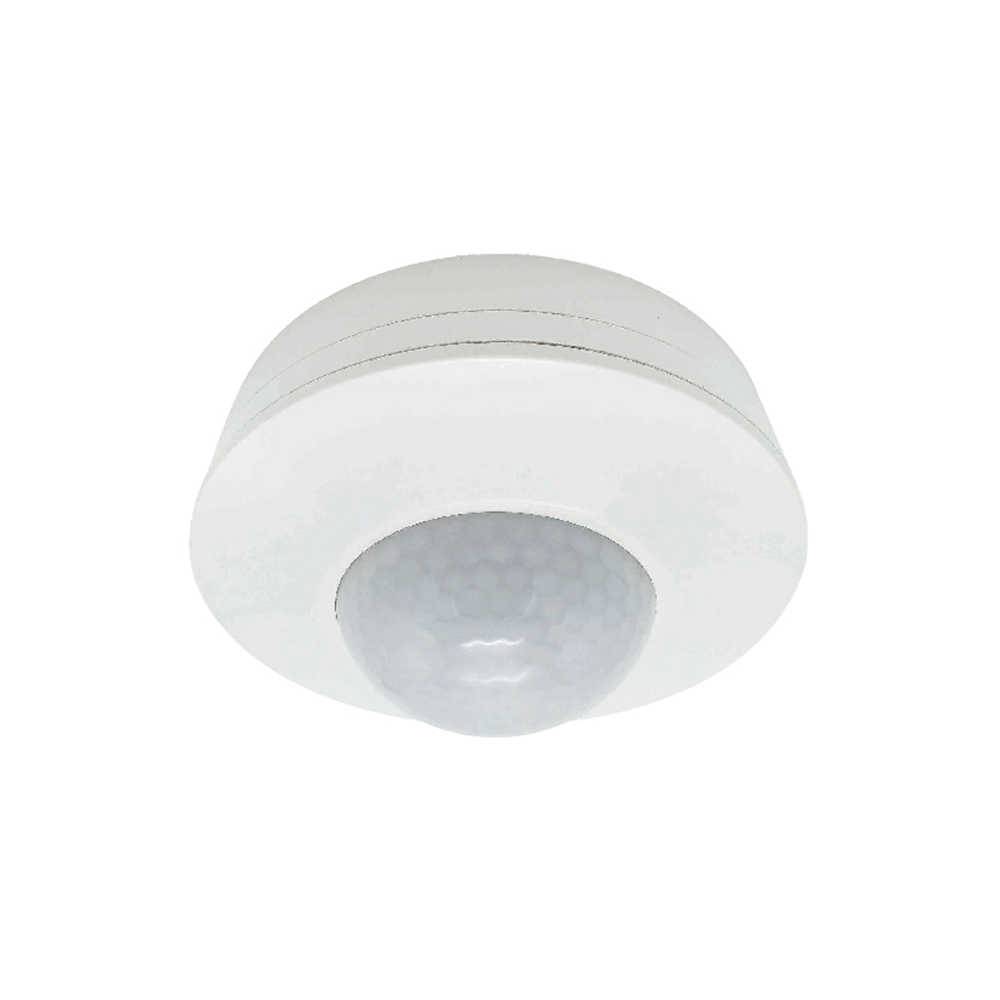

  • IP55 Surface Ceiling Mounted PIR Sensor (PS-SS112-IP55)
  • IP55 Surface Ceiling Mounted PIR Sensor (PS-SS112-IP55)
IP55 Surface Ceiling Mounted PIR Sensor (PS-SS112-IP55) IP55 Surface Ceiling Mounted PIR Sensor (PS-SS112-IP55)

IP55 Surface Ceiling Mounted PIR Sensor (PS-SS112-IP55)

  • Model NO.: PS-SS112-IP55
  • Features: PIR motion sensor
  • IP55
  • INQUIRY

1) Power source: 220-240VAC
2) Power frequency: 50Hz
3) Rated load: 2000W Max.tungsten
 500W Max.fluorescent & LED
4) Time setting: impulse,10sec~20min
(adjust manually/ by infrared remote control)
5) Detection range: 2-8m Max. (radii.)(ceiling installation)
(adjust manually/ by infrared remote control)
6) Detection angle: 360º (ceiling installation)
7) Light-control: <10LUX~2000LUX
(adjust manually/ by infrared remote control)
8) Installation height: 2~4m
9) Protection level: IP55
10) Power consumption: working 0.5W
11) Sense motion speed: 0.6~1.5m/s
12) Working temperature: -10°C~+40°C
13) Working humidity: <93%RH
