Dual Relay PIR Motion Sensor 220-240V Ceiling Occupancy Sensor with Remote Control IP55 Lighting Control Switch (PS-SS112-IP55+dual relay)

Product Description

Dual Relay PIR Motion Sensor for Intelligent Lighting Control

This dual relay PIR motion sensor is designed for automatic lighting control and energy-saving applications.

With two independent relay outputs, the sensor can control two separate circuits simultaneously, providing flexible solutions for commercial and residential lighting systems.

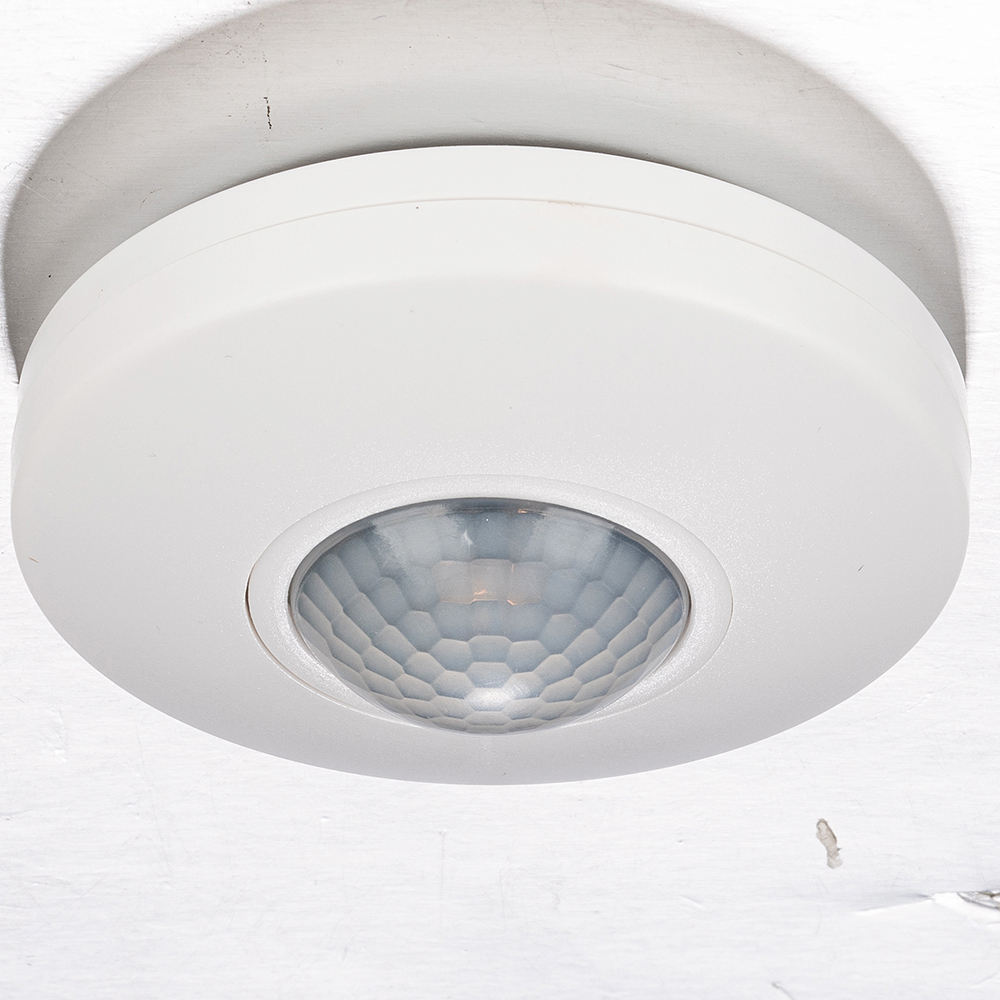

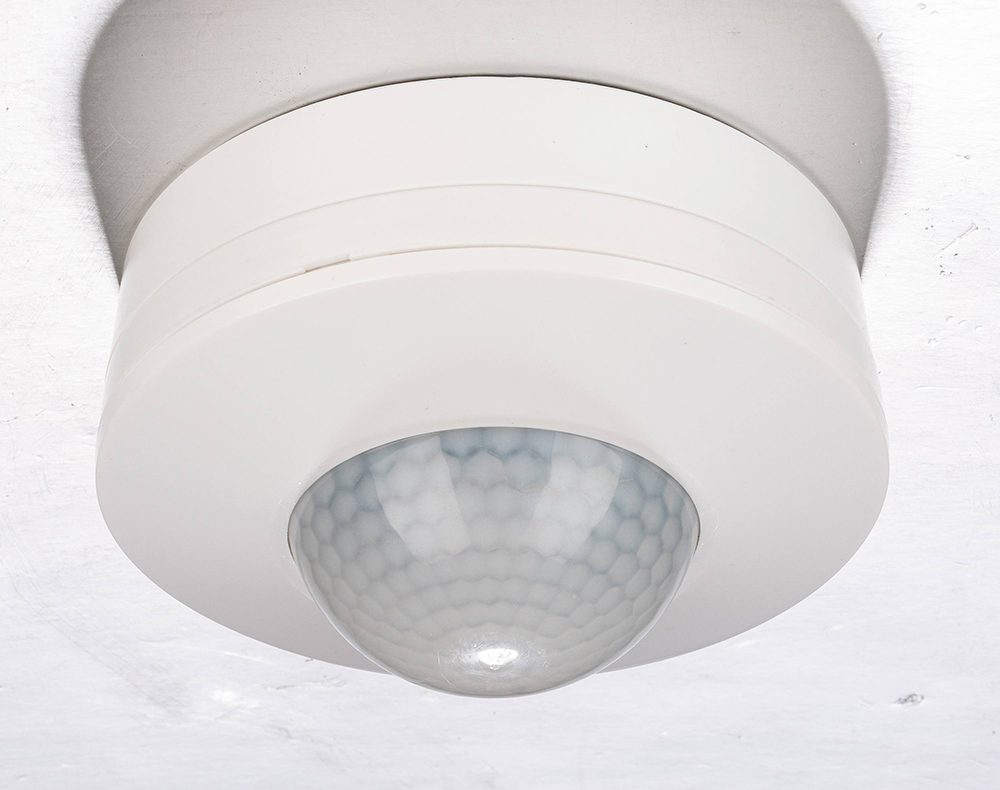

The ceiling-mounted infrared sensor provides 360° detection coverage and supports adjustable detection range, time delay and light sensitivity through manual adjustment or infrared remote control.

With an IP55 protection rating, this sensor is suitable for indoor and semi-outdoor applications such as offices, corridors, warehouses, parking areas, staircases and public buildings.

4. Key Features

Dual Circuit Control

• Two separate relay outputs
• Control two lighting circuits simultaneously
• Flexible wiring solution for different applications

Adjustable PIR Detection

• Detection angle: 360°
• Detection range: 2-8m radius adjustable
• Installation height: 2-4m
• Motion speed detection: 0.6-1.5m/s

Smart Lighting Management

• Time delay adjustable:
• Impulse mode
• 10 seconds - 20 minutes
• Light sensitivity adjustable:
• <10Lux - 2000Lux

Remote Control Function

• Parameters can be adjusted manually
• Compatible with infrared remote controller adjustment

Energy Saving Design

• Low standby power consumption:
• Working power consumption: only 0.5W

Durable Performance

• IP55 protection
• Working temperature:
• -10°C to +40°C
• Working humidity:
• <93%RH

5. Product Specification

6. Application

Suitable for:

✓ Office buildings
✓ Corridors
✓ Stairways
✓ Shopping malls
✓ Parking garages
✓ Warehouses
✓ Hotels
✓ Schools
✓ Hospitals
✓ Public lighting systems
✓ Smart lighting projects
